Podotactil – Warning Tiles
Click on the photo to see it in full size (reference images).
PRODUCT INFORMATION
The WARNING tiles are micro-concrete precast tiles, 10 mm thick for signaling on public roads. Its use is exclusively on floors, both indoors and outdoors.
The color of the plates is incorporated into the dough.
Designs:
– Podotactil STOP (alert and platform edges)

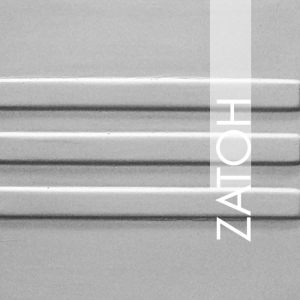

– Podotactil GUIDE (guide)

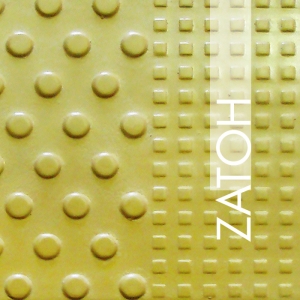

– Podotactil Platform edge (mainly train stations)
COLORS
Due to its cementitious composition, the colors are not uniform: they may show changes in tone within the same tile and / or in relation to the tiles of the same batch.
DESIGNS
MEASUREMENTS

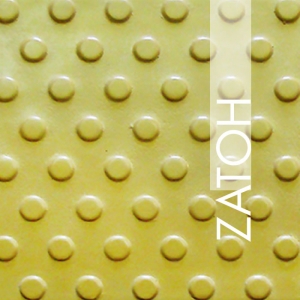

- Tetón/Vanilla 30 x 30 cm (1 cm thick)
- Platform edge 90 x 30 cm (1 cm thick)
COLORS
- amarillo
- gris versátil
USES
The tiles are suitable for indoor and outdoor floors.
The tiles are suitable for indoor and outdoor floors.
ADVANTAGES
– low thickness
– under weight
– low absorption
– High resistance to abrasion
– high impact resistance
– does not discolor with UV rays
The ZATOH tiles are mostly made up of:
– concrete
– selected sand
– additives
– pigments
– concrete
– selected sand
– additives
– pigments
Firm cement binders that do not flake and do not contain rising moisture.
NOTE: The application base must not have slopes greater than 2 mm in 3 m.
NOTE: The application base must not have slopes greater than 2 mm in 3 m.
– Sweep and clean with clean water and neutral detergent
– Apply sealant to water approximately every 6 months or depending on the intensity of traffic.
– Apply sealant to water approximately every 6 months or depending on the intensity of traffic.
– 30 x 30 cm: 2 kg
Each tile is delivered individually heat-sealed and palletized for later transfer to work.
